KDR 2 | Split gland plates
for Rittal TS 8 & Rittal VX25 enclosures / IP54

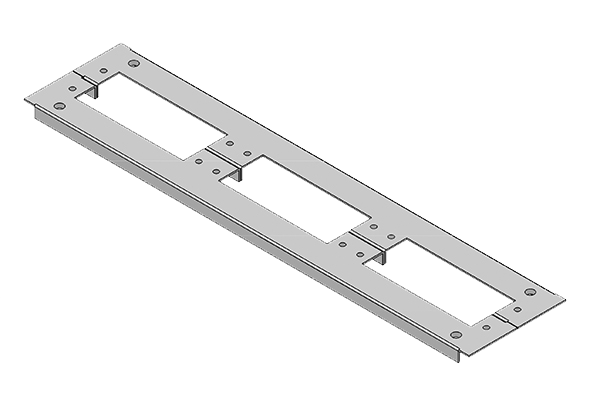

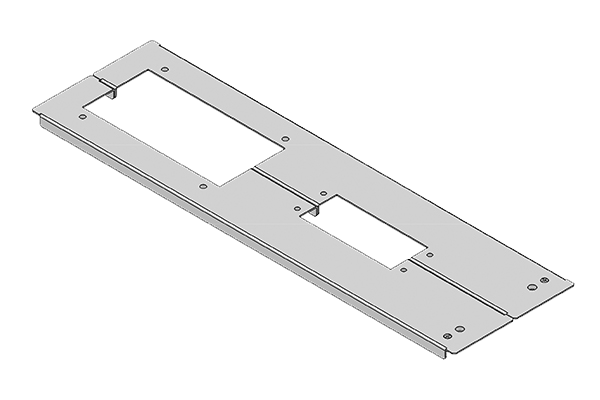

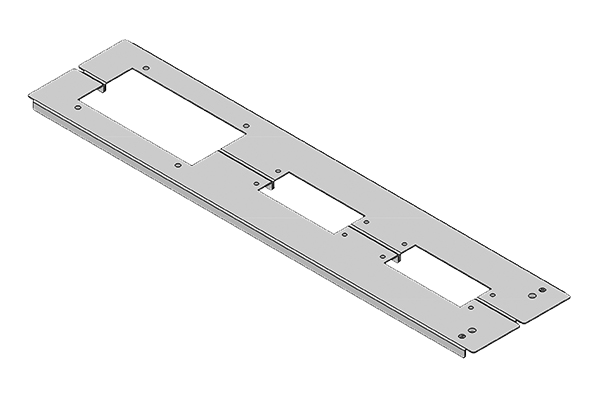

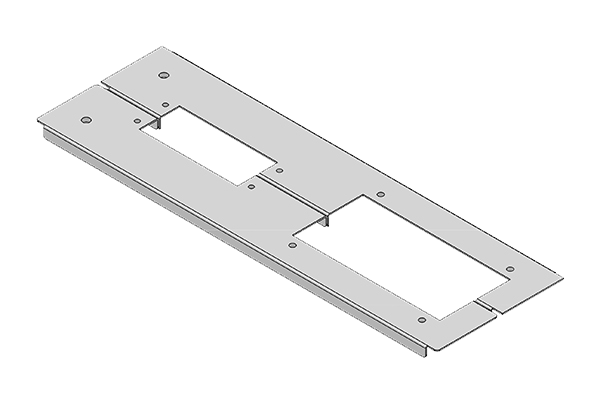

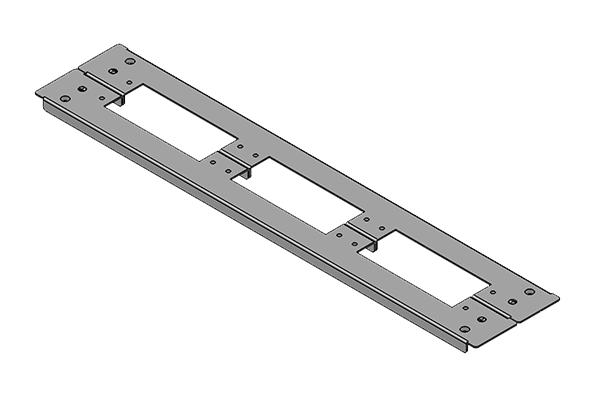

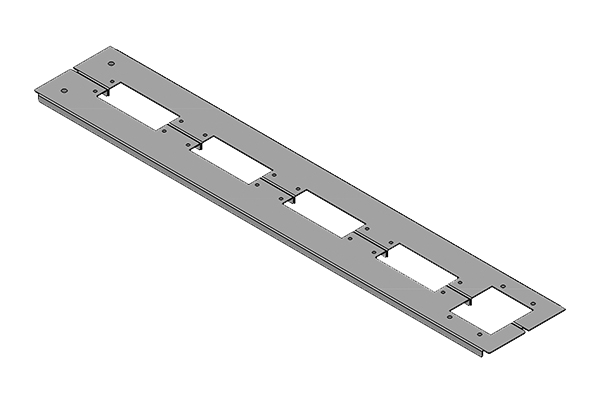

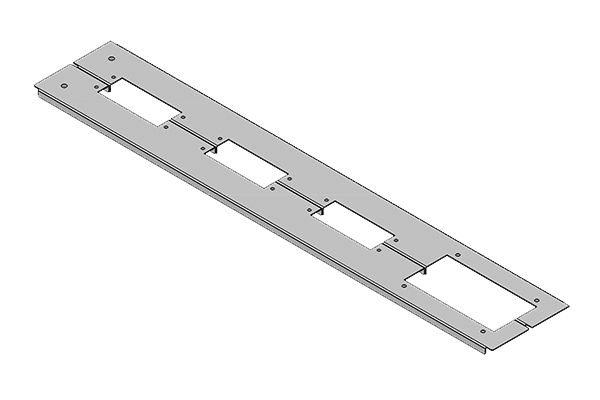

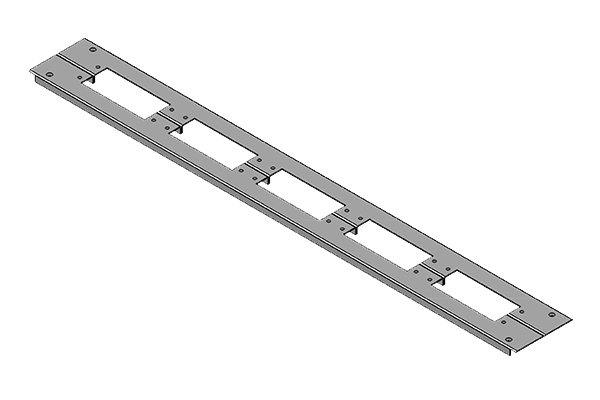

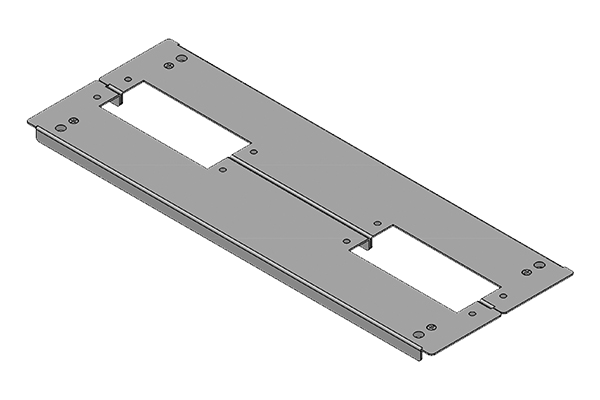

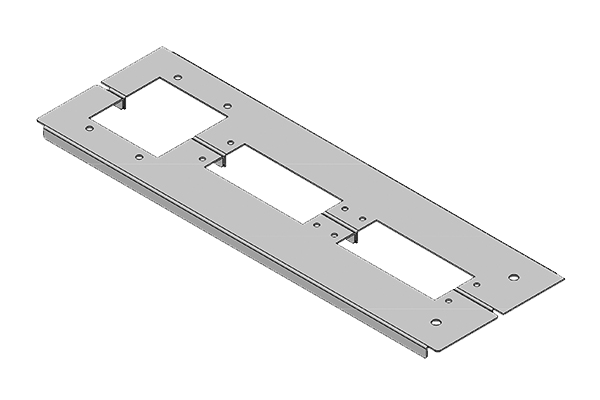

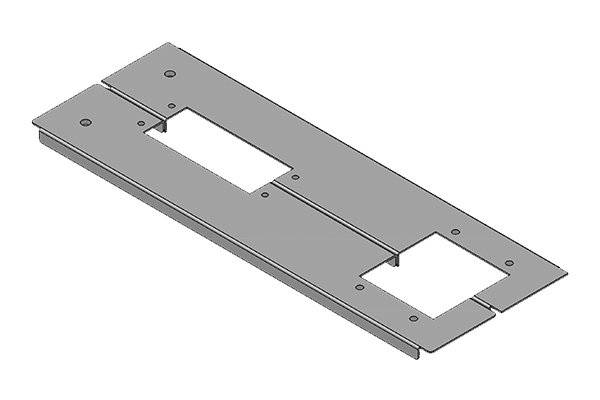

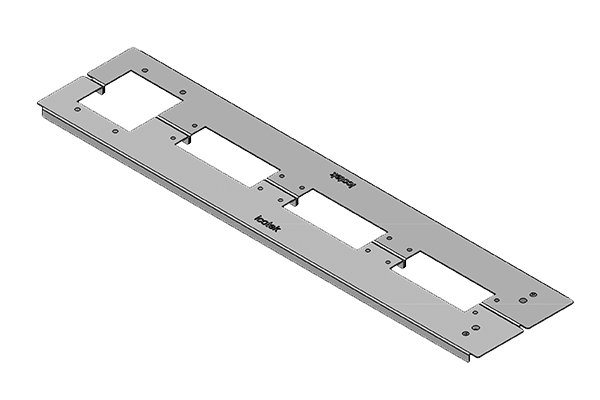

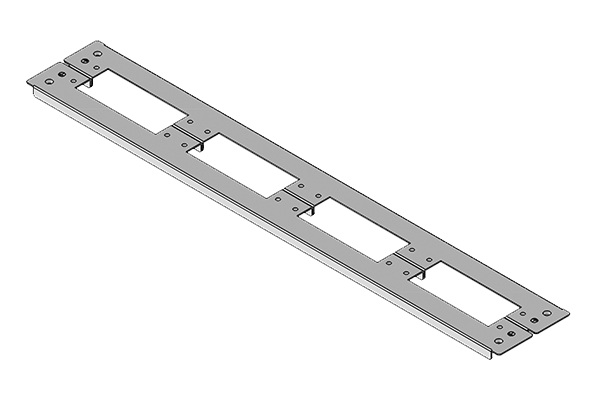

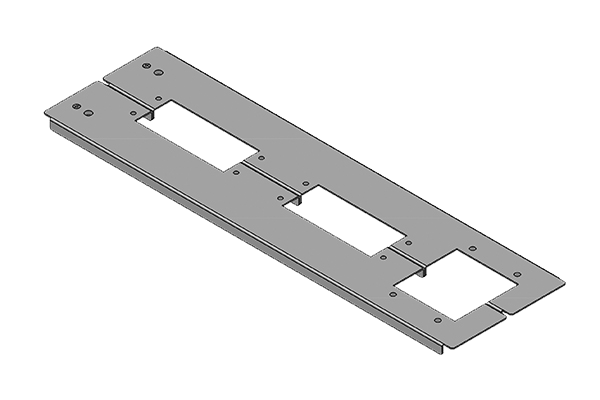

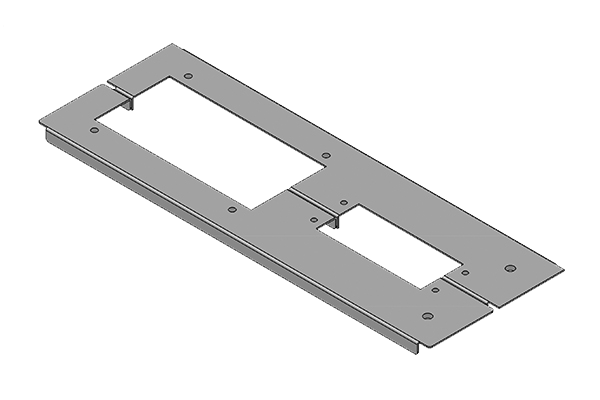

Split, 2-part gland plates KDR 2 with pre-cut holes for centrally split KEL and KEL-JUMBO cable entry systems.
Integrated screw holes provide quick and easy installation of KEL frames.
During assembly, almost the complete base of the enclosure can be used for installation of cables. Retrofitting is possible without disconnecting of cables. All can be installed around the cables.
The gland plate KDR 2 is designed for Rittal enclosures TS 8 & VX25. Other sizes can be supplied on request
Part No.
42920
Advantages and benefits
During assembly, almost the complete base of the enclosure can be used for installation of cables
Even large connectors can be installed easily
Subsequent assembly possible
No additional sheet metal work required
Cut-outs, which are no longer required, are covered with metal blank plates Type BPM
Product types and sizes
Split, 2-part gland plates KDR 2 with pre-cut holes for centrally split KEL and KEL-JUMBO cable entry systems.
Integrated screw holes provide quick and easy installation of KEL frames.
During assembly, almost the complete base of the enclosure can be used for installation of cables. Retrofitting is possible without disconnecting of cables. All can be installed around the cables.
The gland plate KDR 2 is designed for Rittal enclosures TS 8 & VX25. Other sizes can be supplied on request
